Knock Out Pins

are used at several industries and has a common usage in the metal industry. Most of workpiece are as Injection Moulding, Punching dies, Screw heading machineries. Heat coated and grinded knock out pins shaft hardness degree is 60-62 Hrc and the head hardness of 40-45 Hrc degree. They are particularly suitable for die cast tools pressure. According to request pvd(Tin or Tialn coated) knock out pins are available in our stocks for immediate shipping.

Metal: 1.3343 High Speed Steels (HSS)

Hardness Level

Shaft: 60-62 HRC(Rockwell)

Head: 40-45 HRC(Rockwell)

Surface: Grinded , Nitrided, Heat threated and polished.

Above informations are general knock out pins for extra hardness and toughness we suggest to use M42 material ejector pins with additional cobalt added.

Planetary Thread Rolling Dies

operates much more faster and knurls of the screws than regular flat type thread Rolling dies. Planetary Rolling dies exist with 3 pieces which is one circular die and 2 pieces quarter moon or 3 pieces quarter moon. In our stocks we have M2 or M42 material nitrided(oxidized) dies, those planetary thread Rolling dies makes properly knurling of the screws with quantity of 6 or 8 million pieces of metric screws.

Screw & Bolt

DIN 63, DIN 980, DIN 7982, DIN 965, DIN 7504, DIN 966, DIN 7981, DIN 85, DIN 960, DIN 6921, DIN 933, DIN 934, DIN 7991, DIN 9021, DIN 7985, DIN 84, DIN 965, DIN 7983, DIN 7970, DIN 982, DIN 912,  DIN 9614, DIN 603,  DIN 931, DIN 933, DIN 960, DIN 6921

Chq Wires

are well situated in for cold heading process for fasteners and its own attributes high ductility as well as tempering process.

Grades of screw and bolt wires are SAE 1006, SAE 1008, SAE 1010, SAE 1012, SAE 1015, SAE 1018, SAE 1020, SAE 1022, SAE 1030, SAE 1035, SAE 1038, SAE 1040, SAE 1045, SAE 1541, SAE 4037, 4140, for stainless steel screws 304 Cu, 302 Hq, SAE 316, 430 Cu, 10b21, boron steel 15b25.

Diameter: 0,8mm up to 25,00mm.

Coil Weights: 30 Kg up to 400 Kg Available.

Chq Steel Wire Treatment process are;

  • Spherodized annealing(Saip Process)
  • Pickling
  • Phosphated
  • Soap coating
  • Drawing

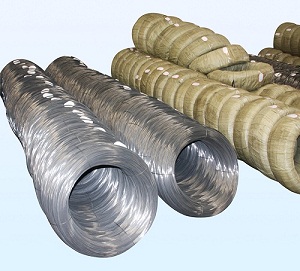

Spring Wire

-  Cusn6 and Cusn8 phosfor bronze spring wire.



-  0,15mm up to 24,00mm BS EN 10270-1:2001 Steel wire for mechanical springs. Patented cold drawn unalloyed spring steel wires.



SL Grade for low tensile strength on static duties

SM Grade for medium tensile strength on static duties

SH Grade for high tensile strength on static duties

DM Grade for medium tensile strength on dynamic duties

DH Grade for high tensile strength on dynamic duties

- Oil Tempered Cr-si and Cr-V Spring Steel wire for the springs for high duty dynamic springs.



- AISI 302/304/310/316 Spring steel wire(Sus Wire)

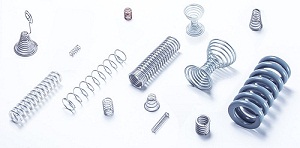

Springs

From 0,15mm up to 36,00mm all kinds of Compression Springs, Extension Springs, Torsion Springs, Wire Forms, Tension Springs, Custom Springs.
